Blockhaus, Wandaufbau Holzhäuser

Holzhäuser Wandaufbau Technologie

Nachfolgend einige Beispiele für die Umsetzung – Bau von Wänden aus Blockhäusern, Holzhäusern – Technologie

Wichtig: Wir fertigen und bauen auch Außenwände nach Kundenwünschen und -vorgaben unter Berücksichtigung spezieller Anforderungen wie KfW-Förderung oder U-Wert.

Die Dicke der Dämmschicht sowie die Wahl des Dämmmaterials (Steinwolle, Mineralwolle, Glaswolle und Holzfaserdämmung) sind variabel und werden an Ihre individuellen Anforderungen angepasst.

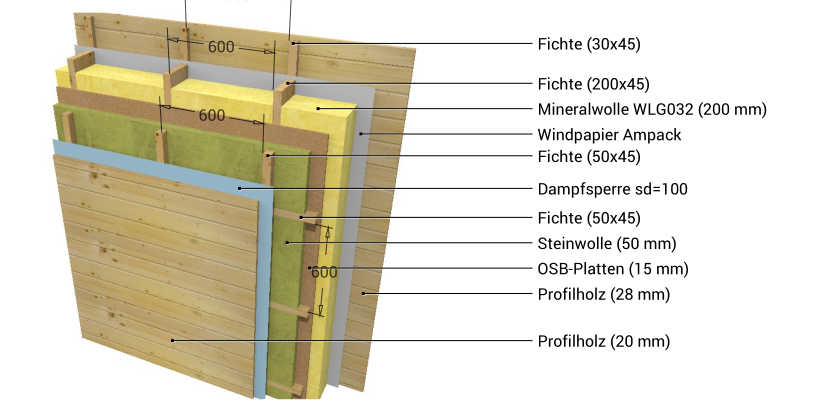

B-28 Blockhaus Außenwand Fassadenbretter U = 0,14 W/(m²K)

B-28
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (28 mm)
  • Fichte (30×45)
  • Fassadenbahn Windsperre
  • Fichte (200×45)
  • Mineralwolle WLG032 (200 mm)
  • OSB-Platten (15 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Fermacell Plate oder Profilholz (20 mm)

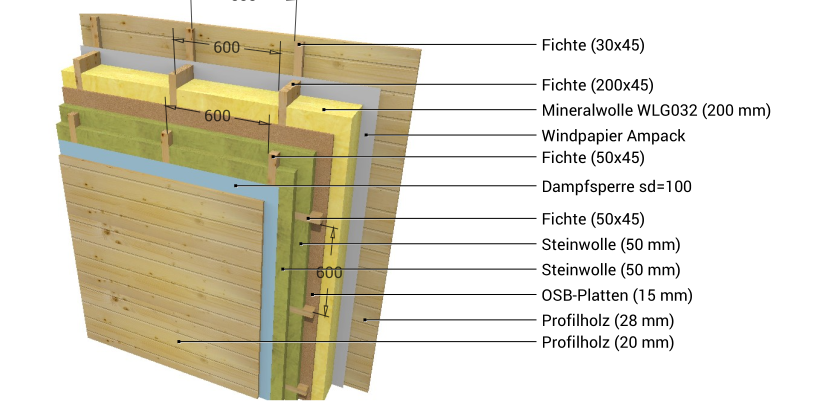

B-28 PLUS Blockhaus Außenwand Fassadenbretter U = 0,12 W/(m²K)

B-28 PLUS
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (28 mm)
  • Fichte (30×45)
  • Fassadenbahn Windsperre
  • Fichte (200×45)
  • Mineralwolle WLG032 (200 mm)
  • OSB-Platten (15 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Steinwolle (50 mm)
  • Dampfsperre
  • Fermacell Plate oder Profilholz (20 mm)

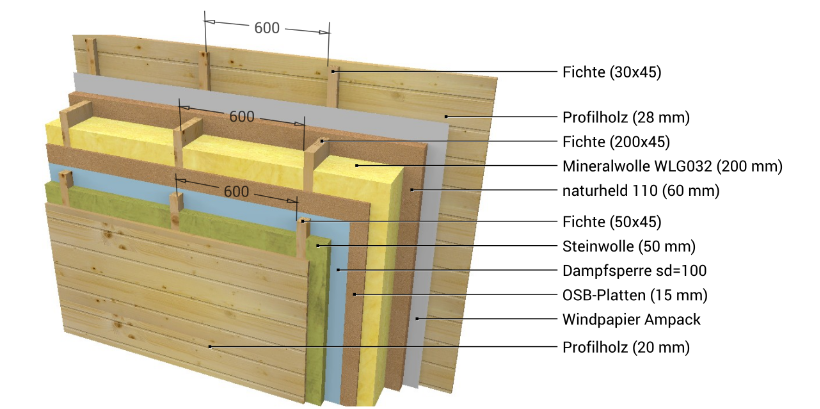

B-28 NATURHELD 60mm Außenwand Fassadenbretter U = 0,12 W/(m²K)

B-28 NATURHELD
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (28 mm)
  • Fichte (30×45)
  • Atmungsaktive Folie/Winddichtung
  • NATURHELD Platte 60mm
  • Fichte (200×45)
  • Mineralwolle WLG032 (200 mm)
  • OSB-Platten (15 mm)
  • Fichte (50×45) Installationsebene
  • Steinwolle (50 mm)
  • Dampfsperre
  • Fermacell Plate oder Profilholz N+F (20 mm)

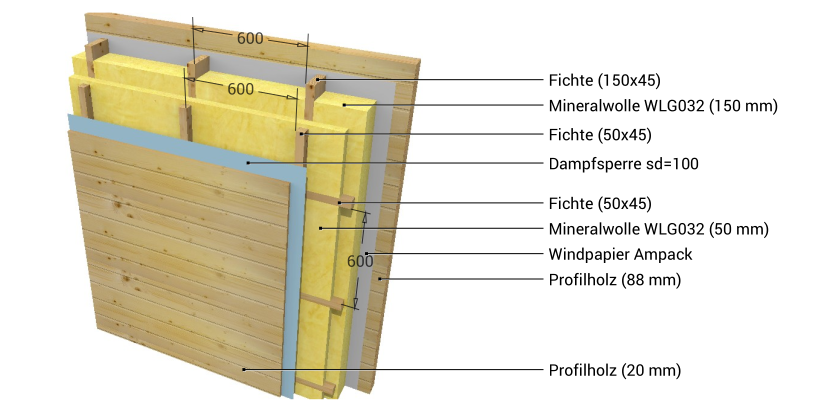

B-88-Blockhaus Außenwand Blockbohle U = 0,15 W/(m²K)

B-88
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (88 mm)
  • Fassadenbahn Windsperre
  • Fichte (150×45)
  • Mineralwolle WLG032 (150 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Profilholz (20 mm)

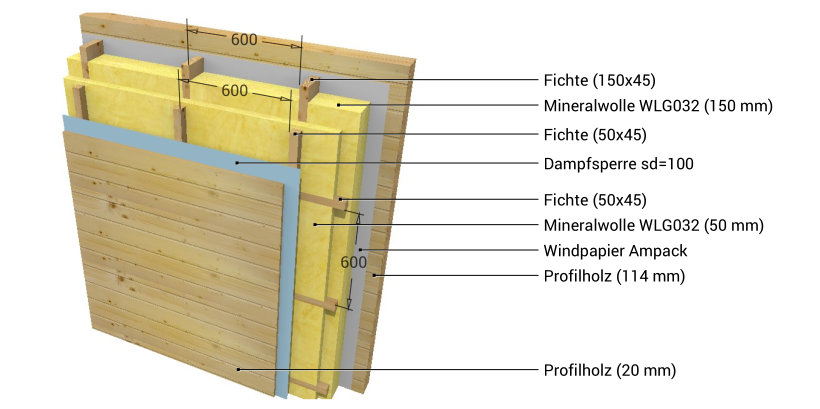

B-114-Blockhaus Außenwand Blockbohle U = 0,15 W/(m²K)

B-114
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (114 mm)
  • Fassadenbahn Windsperre
  • Fichte (150×45)
  • Mineralwolle WLG032 (150 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Profilholz (20 mm)

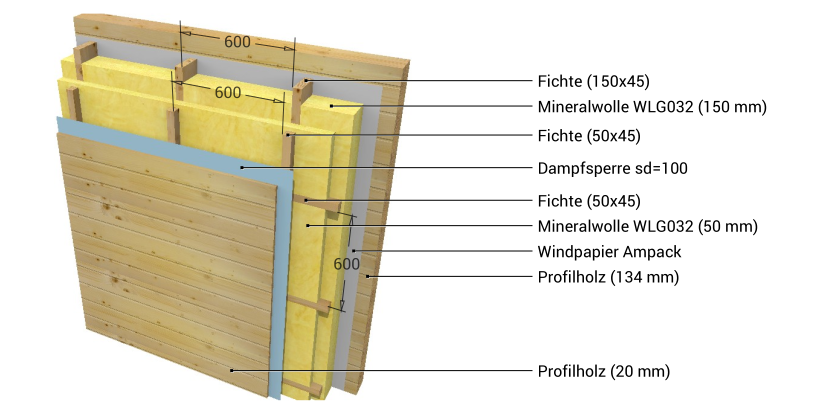

B-134-Blockhaus Außenwand Blockbohle U = 0,14 W/(m²K)

B-134
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (134 mm)
  • Fassadenbahn Windsperre
  • Fichte (150×45)
  • Mineralwolle WLG032 (150 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Profilholz (20 mm)

B-158-Blockhaus Außenwand Blockbohle U = 0,14 W/(m²K)

B-158
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (158 mm)
  • Fassadenbahn Windsperre
  • Fichte (150×45)
  • Mineralwolle WLG032 (150 mm)
  • Fichte (50×45)
  • Mineralwolle WLG032 (50 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Profilholz (20 mm)

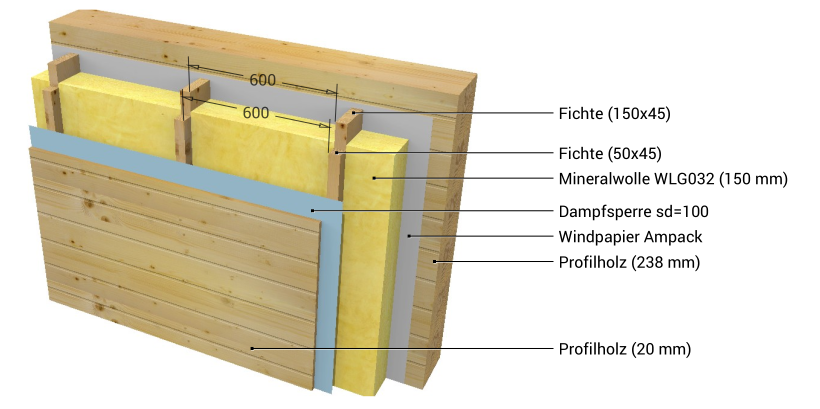

B-238-Blockhaus Außenwand Blockbohle U = 0,16 W/(m²K)

B-238
Klicken Sie hier, um die Spezifikation herunterzuladen.

Legende

  • Profilholz (238 mm)
  • Fassadenbahn Windsperre
  • Fichte (150×45)
  • Mineralwolle WLG032 (150 mm)
  • Fichte (50×45) Installationsebene
  • Dampfsperre
  • Profilholz (20 mm)

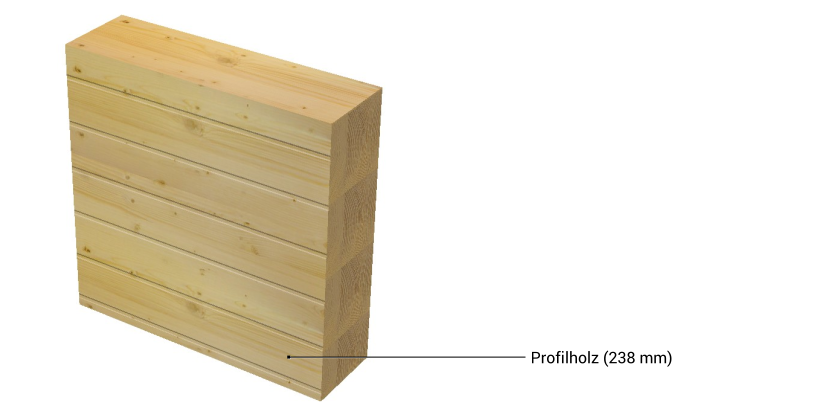

B-238-Blockhaus Außenwand Blockbohle

Profilholz (238 mm)
Profilholz (238 mm)

Legende

  • Profilholz (238 mm)

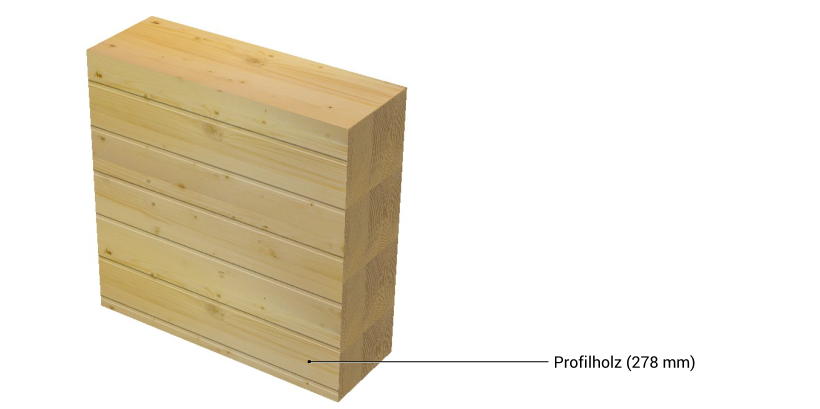

B-278-Blockhaus Außenwand Blockbohle

Profilholz (278 mm)
Profilholz (278 mm)

Legende

  • Profilholz (278 mm)
